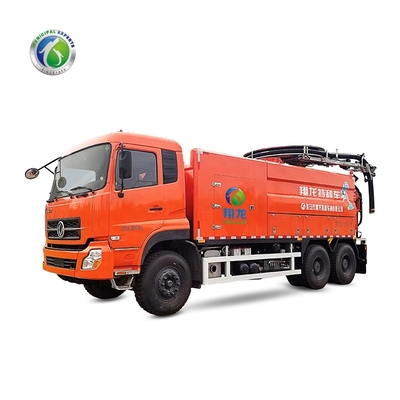

9000L Combi Vacuum Jetting Truck For Sucking Waste Liqud Sewage Tanker 4 m3

1 acre

MOQ

9000L Combi Vacuum Jetting Truck For Sucking Waste Liqud Sewage Tanker 4 m3

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Transmission Type: Manual

Condition: New

Emission Standard: EURO 5

Fuel Type: Diesel

Tank Volume: 9,000L

è½¦èº«å°ºå¯¸: 4600+1350

Horsepower: 283

Gross Vehicle Weight: 25000

Sludge Tank volume: 9 m3

Water tank capacity: 4 m3

Pump model: Tri-Plunger pump

Max working pressure: 205bar

Flow rate: 346L/min

Vacuum air flow: 2800m3/h

Dredging distance: â‰¥120 m

Suction time: â‰¤4 min

Basis informatie

Model Number: Tri-Plunger pump

Betalen & Verzenden Algemene voorwaarden

Packaging Details: nude

Supply Ability: 5 Unit/Units per Month

Productomschrijving

9000L Combi Vacuum Jetting Truck for Sucking Liqud Waste

Product Description

What is the main Application of the Combi Truck and Characteristics?

Application-----

1. With the function of jetting,dredging,pumping back,water recycling,separation,pressing,the vehicle can greatly improve work efficiency,save time and cost by reducing operator number and less downtiome.

2. The vehicle is being widely used in collection,transportation and discharging of waste water,sludge ,sand,bricks from underground sewer pipes,rain-water well,raw oil,also for collection of leaked oil,wasted oil from factories and mines.

Main Technical Parameter Show Blow:

	Item	Parameters
Vacuum system	Vacuum pump	Liquid ring vacuum pump, Siemens tech
	Max vacuum level	97%
	Air flow rate	2800m3/h
	Rotate speed	Max 900r/min
	Protection	1. filter 2. Vacuum pressure relief valve
	Suction boom	Disk type, carry 20m suction hose

Sludge and Water Tank	Shape	Cylindrical shaped tank with external reinforce rings
	Material	Mild steel
	Capacity	9000L sludge tank & 4,000L fresh water tank
	Shell thickness	5mm
	Tipping cylinder	Front tipping and double acting cylinder
	Safety support	Support the tank to ensure safety when it’s tipped up
	Sight glasses	3units are mounted at the rear of the tank
	Over pressure safety	Over pressure relief valve on tank top
	Full opening rear lid	Hydraulically opening and locking
	Inlet and Outlet Valve	Pneumatically and Manual operation
	Primary shut off	SS float ball prevents overfilling sludge tank.

Click for more information!!!

Product Photo

Related Products

Company Information

Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...

Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…

Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.

What's our factory Professional advantage?

1.We established joint venture with one EURO company in 2003. By introducing high-end municipal trucks design and manufacture philosophy, our trucks meet EURO level with more advancement and stability.
2. Strict quality control process and humanized designed details. Raw material purchased under normative QC. Every process required by manufacture standard. Every detail focuses on humanization.
3. Original chassis from manufacture.
4.Use Liquid ring vacuum pump. Comparing to air cooling vane pump, air flow up to 2800m3/h, -0.97bar vacuum level and long continuous work time due to water cooling type.
3Reverse discharge capability discharges water and leaves sludge, reduces round trip times between drainage well and dumping site.
5.Multiple safety protections, include ultrasonic liquid level indicator, float ball, pressure safety valve at the top of tank and vacuum air lines.
6. Euro trained workers achieve perfect welding quality. Decades of manufacturing experience makes outstanding tank seal performance.
7. All-In-One control panel for safe and easy operation.
8. We introduced series of Painting Equipment. Paint has longer term corrosion resistance, thicker film,better gloss and maximum weather resistance. Whole trucks use two components aqueous paint, which is environment friendly.

As municipal solution specialist,we factory always focus on Environment protection all around the world with high-end european quality and have already passed the safety approval as ISO9001,GS,SGS .Huaian XiangLong special purpose vehicle Co.,Ltd is a listing in Jiangsu Equity Exchange-stock Company,it's powerful symbols in China.

Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.

Q1:Are you a factoty or trading company?

A1:We are professional manufacturer and seller with the experience of over 30 years.

Q2:What about the quality?

A2:Quality is priority .All the products will be 100% check before shipment .We check our products one by one before we pack and ship to make sure they are all what you ordered,to make sure the quantity and in good condition.

Q3:How can I get lower price ?

A3:We are factory manufacturer , we will provide competitive price for you , pls contact our salesman, you will get more discount.

Q4:How is your truck meeting our country standard?

A4:Firstly,we have 30 years exporting experiecne,OEM is avaliable for our customers.

Secondly,All our trucks will be made according to different countries standard, and accepted been tested and confirmed by customers before loading. we will provide valid chassis number and documents which can help register the truck on road of buyer's countries..

Q5:How long does the shipping will take ?

A5:For production,We will send the goods within 30 days after 30% deposit has been confirmed.

Q6: What's the payment terms?

A6:We accept T/T, Paypal, L/C ,Secure payment, alipay and so on ...

Q7:Could you accept OEM order?

A7:We have professional designers who can design your logo and offer best solution & styles for your OEM products.

Q8:Do you have experience to export Vacuum Truck oversea?which countries did you export before?

A8:Dear ,we have lots of experiences to export to many countries before,eg.
Australia,Southeast Asia,Middle East,Africa,Russia,South America,Korea,Japan and so on.
